Pocket Nc Tshuab
Khoom loj: 600x400x510mm
txaj qhov ntev: φ100mm
Maximum payload ntawm lub rooj ua haujlwm: 5kg
ceev 0-24000rpm
Windows System Control
Txhawb G code tswj
CAD los yog CAM milling
Hauj lwm lawm
Kev tsis
Khoom Description
Lub hnab tshos NC tsib-axis milling tshuab yog qhov zoo tagnrho rau kev tsim khoom ntawm tus kheej, kev kawm digital, thiab kev xav tau ntawm cov nqi qis. Nws tuaj yeem siv txhua qhov chaw ntawm lub desktop kom ua tiav kev tsim sai thiab tsim khoom ntawm tus nqi qis. Raws li cov cuab yeej tsib-axis digital tshuab, nws tau tswj hwm los ntawm Windows system thiab tuaj yeem ua haujlwm zoo milling nrog kev pab los ntawm CAD lossis CAM software.
Nws txhawb G-code tswj, muab cov neeg siv nrog ntau yam kev xaiv ua haujlwm. Nws lub hnab tsho loj tsim ua rau nws nqa tau yooj yim, thiab tsib-axis lub cev muaj zog ntxaiv ceev tuaj yeem ncav cuag 0-24000rpm, uas ua tau raws li cov kev xav tau ntawm cov kws tshaj lij. Nyob rau hauv cov nqe lus ntawm milling cov ntaub ntawv, hom yas, aluminium alloys, ntoo, tooj liab, kub, nyiaj, wax, thiab lwm yam yuav ua tau tiav. Rau cov ntaub ntawv sib txawv, tsuas yog hloov lub taub hau sib txawv, tsis tas yuav tsum muaj qhov ciaj ntswj, thiab kev ua haujlwm yooj yim heev.
Test video
Lub tsib-axis CNC xeem qhov project yuav los ntawm MIT ntse neeg hlau pab neeg.
(Ntau qhov haujlwm tsim los ntawm pab pawg, suav nrog MIT Mini Cheetah:https://www.youtube.com/watch?v=xNeZWP5Mx9shttps://www.youtube.com/watch?v=G6fMV1UPzkgthiab Rubik's Cube daws sai tshaj plaws hauv ntiaj tebRobot lus nug:https://www.youtube.com/watch?v=nt00QzKuNVYsiv Pocket NC tshuab los tsim cov khoom rau cov haujlwm zoo sib xws.)
Tech Specs
| Ntim Loj | W800xD600xH800mm | Ntim hnyav | 100-120kg |
| Cov khoom siv loj | W600xD400x H510mm | qhov hnyav ntawm cov khoom siv | Net nyhav ntawm 45kg, nrog cov ntawv hlau ntawm 75kg ua |
| Lub txaj Dimension | φ100 hli | Maximum payload ntawm lub rooj ua haujlwm |
5kg ua |
| XYZ ua haujlwm zoo | X160xY200xZ130mm | AC ua haujlwm zoo | A: -30-120 degree, C 360 degree |
| Peb axis ua ntau yam | X160xY200xZ125mm | Tsib axisprocessing ntau yam | Lub tog raj kheej: φ 150 H105mm, φ 100 H120mm, cube W125D 125 H110mm |
| Peb-axis ua qhov tseeb | Linear axis parallelism thiab ntsug degree ntawm 0.03mm, Kev mus txawv tebchaws yog 0.02mm |
Tsib axis ua qhov tseeb | Linear axis parallelism & ntsug degree ntawm 0.05mm, Fve-axis spatial raug ntawm<0.05mm |
| XYZ Pob hlau pas nrig | X&Z: 1204C7, Y: 1604 C7, nce qib C5 | AC axis |
1:80 20 Harmonic reducer rov qab los<1' |
| XYZ linear qhia rail | X&Z Hiwin MGN12 Y: Hiwin MGN15 | lub cev ncej | 6061T6 aviation aluminium + stressed kev hloov kho ntawm 45 steel |
| Kev ceev ceev | 4000mm / min txawv ntawm cov khoom | ||
| thawj axis | φ65mm 800W Dej-txias hluav taws xob spindle ntawm 24, 000r / min |
tiv thaiv | Lub cev yog plua plav pov thawj + roj foob yog waterproof thiab dustproof |
| Tool diameter & length | ER11.0-8mm, Tsawg dua lossis sib npaug li 75mm | Part fixtures | Steel fixture nrog reserved qhov chaw Tau ntxiv er50 clip yas dhos, 63,80 daim npav |
| cov ntaub ntawv ua haujlwm | Hlau: aluminium alloy.copper alloy, kub alloy, silveralloy.* steel, * titanium alloy | Non-metat yas, ntoo, siv quav ciab, jade, iav thiab lwm yam |
Shipping List
| Order Number | Hom | Lub npe | Piav | Ntau |
| 7 | Khoom siv | Main Cav | Lub tshuab liab qab tsis muaj daim hlau |
1 |
| 2 | Khoom siv | Hom A: kev ua tus kheej platform pliers |
8-55 hli square ping | 1 |
| 3 | Riam Fixture | ERlI clamp lub tog raj kheej | ER11-4&ER11-6 | 1 |
| 4 | Cutter | Ntse riam, ntsug milling cutter, pob riam |
0.2 hli ntse riam (rau carving) 10 2.4.6mm ntsug milling cutter 2, R pob riam 2 |
18 |
| 5 | Hluav taws xob | zog box | Lub cev muaj zog tswj frequengy converter | 1 |
| 6 | kab hluav taws xob | Tag nrho fais fab mov rau cov khoom siv | 1 | |
| 7 | USB data kab | Txuas lub computer mus rau lub tshuab host | 1 | |
| 8 | Electronichand log | Kev ua haujlwm ncej txav | 1 | |
| 9 | Tool | 1 set ntawm puab agon wrench | 1. 5-109PCS | 1 |
| 10 | Ib txheej ntawm spindle wrench | 14 & 17mm open-wrench | 1 | |
| 1 | Khoom siv | Tiam ntoo 4 daim | Xyaum nrog | 1 |

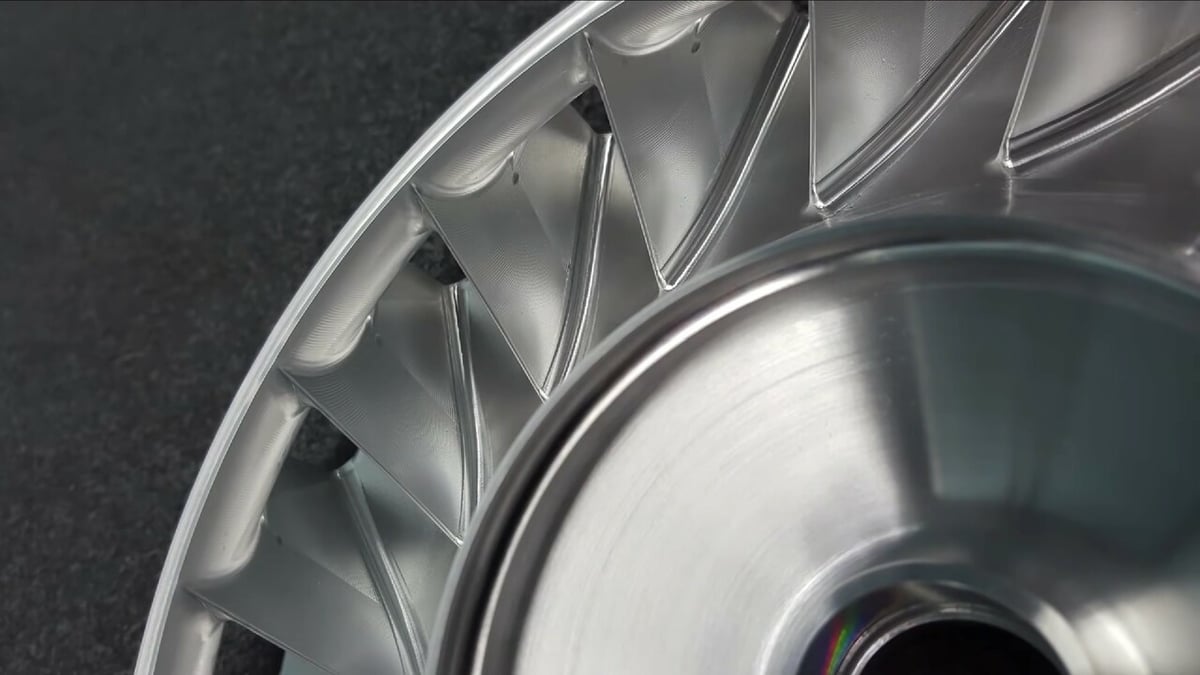

Lub luag haujlwm ntawm 5-axis CNC milling tshuab
5-axis machining yog qhov kev xaiv zoo tshaj plaws thaum ib feem yuav tsum muaj qee theem ntawm lub zog, tsis muaj qhov, lossis yog tsim los ntawm cov khoom siv raw. Hauv cov xwm txheej no, txawm tias DMLS 3D tshuab luam ntawv zoo tshaj plaws yuav tsis tuaj yeem ua tau raws li koj xav tau.
5-axis CNC machining tuaj yeem siv los hloov kho cov khoom uas twb muaj lawm nrog cov yam ntxwv nyuaj uas tsis tuaj yeem ua tau nrog high-end 3D tshuab luam ntawv. Uas tau hais tias, 5-axis machining tsis yog ib qho kev daws teeb meem zoo tshaj plaws rau txhua qhov chaw tsim khoom teeb meem.
Kev txwv:
Nws yog ib txoj kev nyuaj dua. Thaum lub tshuab luam ntawv 3D tuaj yeem qhib thiab sab laug ib leeg, 5-axis CNC milling tshuab yuav tsum tau siv sijhawm thiab siv zog ntau dua. Qhov no yog vim hais tias cov Tshuag yuav tsum tau rov qab repositioned, calibrated, lub taub hau lub cuab tam yuav tsum tau hloov, thiab CAM yuav tsum tau ua nyob rau hauv cov kauj ruam.
Nws lub peev xwm geometric tseem muaj qhov txwv. Txawm hais tias qhov nyuaj tshaj plaws geometry uas tuaj yeem ua tiav yog qhov nyuaj dua li qhov 3-axis milling tshuab tuaj yeem ua tiav, nws tseem tsis tau piv rau ntau lub tshuab luam ntawv 3D tuaj yeem ua tiav. Piv txwv li, txawm tias ib qho 5-axis CNC milling tshuab tsis tuaj yeem tsim lub hollow kheej kheej los ntawm cov khoom siv.
Muaj cov khoom pov tseg hauv cov txheej txheem tsim khoom. Raws li kev siv thev naus laus zis ntawm koj lub tshuab luam ntawv 3D, CNC milling tshuab yuav nkim ntau cov ntaub ntawv (tom qab tag nrho, nws yog cov txheej txheem tsim tawm). Txawm li cas los xij, qee zaum qhov no tuaj yeem txo qis, xws li milling tshuab pov tseg (xws li txhuas thiab hlau) feem ntau tuaj yeem sau thiab rov ua dua tshiab los ua cov khoom tshiab.
.
Txawm koj xav tau dab tsi, thov koj xav tiv tauj peb.
Tiv tauj peb:xslightings@xslightings.com
FAQ
Cov 5-axis ntawv yog dab tsi?
5-axis configurations yeej ib txwm siv cov X, Y, thiab Z-axes nrog rau ob tug lwm axes xaiv los ntawm cov A, B, thiab C-axes. A, B, thiab C-axes siv sib txawv nyob ntawm seb lub tshuab style.
Lub luag haujlwm ntawm 5-axis yog dab tsi?
5-axis machining tso cai rau cov neeg teb xov tooj mus rau qhov chaw machining los ntawm txhua qhov kev qhia thiab axis hauv ib qho haujlwm. Yog li ntawd, tshem tawm qhov xav tau ntawm phau ntawv workpiece repositioning ntawm kev ua haujlwm. Tsis tas li ntawd, nws txuag lub sijhawm thiab yog qhov zoo tagnrho rau kev tsim cov khoom nyuaj uas xav tau qhov tseeb.
Cov ntaub ntawv dab tsi tuaj yeem ua lub tshuab no?
Pocket NC txhawb nqa ntau yam ntaub ntawv, suav nrog txhuas, tooj dag, titanium, stainless hlau, engineering plastics, thiab lwm yam.
Dab tsi yog qhov zoo ntawm 5-axis CNC tshuab?
Qhov zoo ntawm 5-axis tshuab suav nrog kev ua haujlwm siab thiab raug, nrawm nrawm, tsawg lub tshuab teeb tsa, muaj peev xwm tsim cov geometries nyuaj, txhim kho qhov chaw tiav, thiab txhim kho cov txheej txheem drilling.
Txoj kev 5-axis yog dab tsi?
5-axis machining yog ib lub tswv yim uas tso cai rau kev tswj cov lej hauv computer (CNC) txav ib qho khoom lossis txiav cov cuab yeej raws tsib lub axes sib txawv (X, Y, Z thiab ob lub voj voog ntxiv) ib txhij. Qhov no muab qhov muaj peev xwm tsis kawg ntawm kev siv cov khoom nyuaj heev, uas yog vim li cas 5-axis machining tau txais ntau thiab nrov dua.
